About

Download: Software and Manual


Download Link: Software Package (Last Update: 2018-02-15 updated firmware files and documentation)


Content of the free Software package:

  • Application: "ADX-24" 8-channel X-t-plotter and data-logger (see below, requires Microsoft Windows)
  • Operating manual
  • WHQL certified USB-driver for Windows XP to Windows 10
  • Example Programs in C#, Visual Basic, Matlab und Labview
  • Interface documentation, i.e. for using the ADX-24 with Linux
  • Latest firmware

You can also still download the old Version from 2013.

Interface Programming


For information on how to use the ADX-24 with your own software, look into the directory "Example Programs" of the Zip file linked above.

On non-Microsoft platforms, the serial port can be used to interface to the ADX-24. Linux provides a virtual COM port via libftdi.

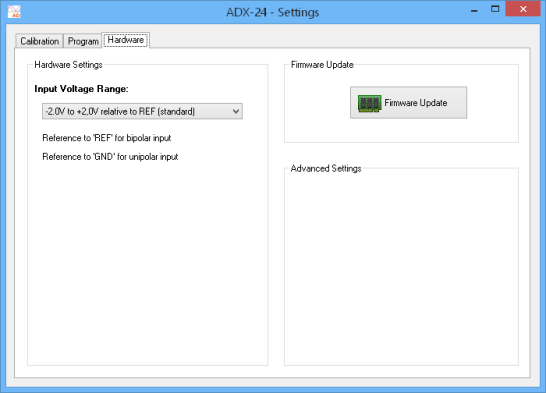

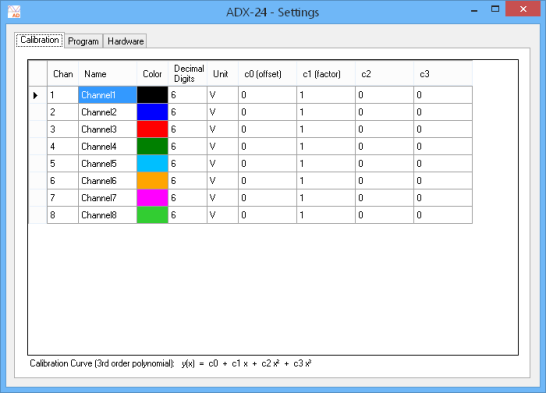

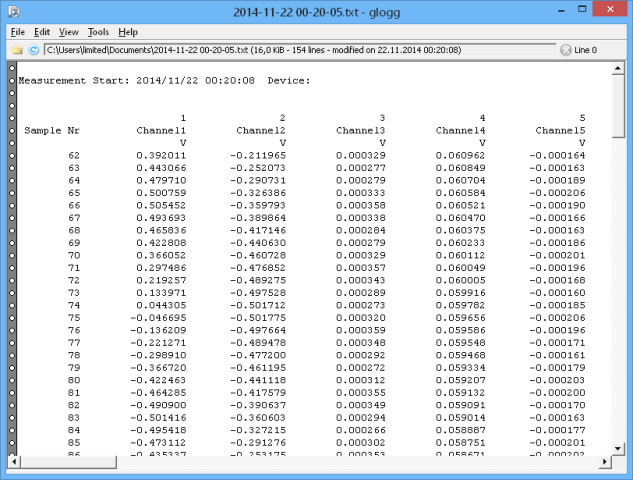

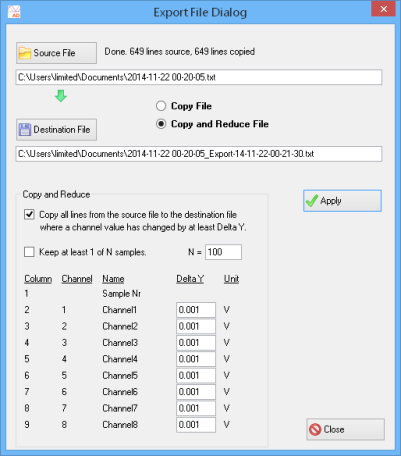

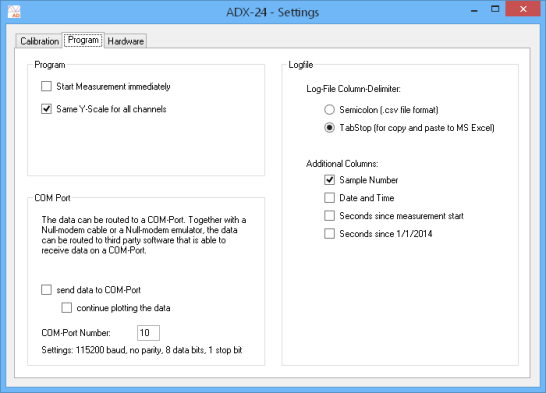

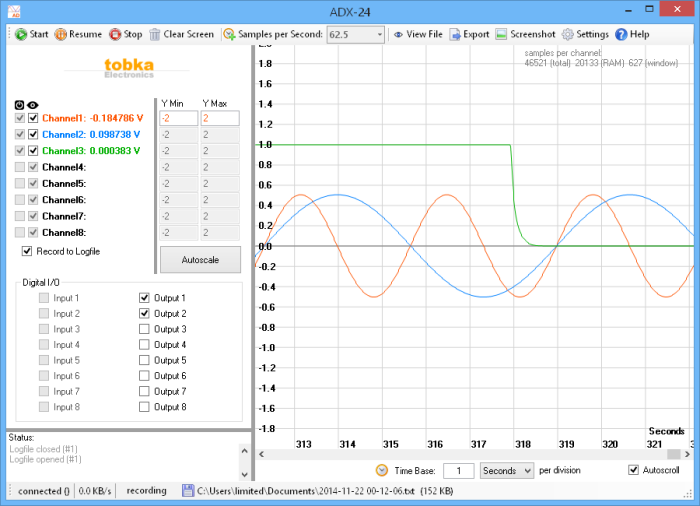

Screenshots
